SKU: PF04/1.5WH:FFA

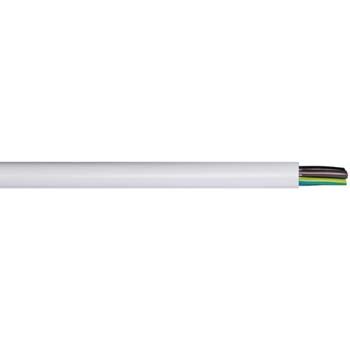

1.5MM 4C FLEX PVC WHITE

Firstflex 4 Core Flexible Cable

1.5MM 4C FLEX PVC WHITE

Attributes
Conductor	1.5mm² (28/0.26mm) Annealed plain copper stranded high flexibility (Class 5).
Cores	4 - Brown, Black, Grey, Green/Yellow
Insulation	SPVC V-90.
Jacket	SPVC - White
Installed Temp Rating	Fixed -20 to 90°C / Flexing -5 to 75°C.
Rated Voltage	Uo/U 250/440V
Min. Bend Radius	Fixed 7.5 x cable diameter / Flexing 15 x cable diameter
Nominal O.D (mm)	9.4mm
Current Rating	15 amp
