SKU: ML1/16BKG2:FFA

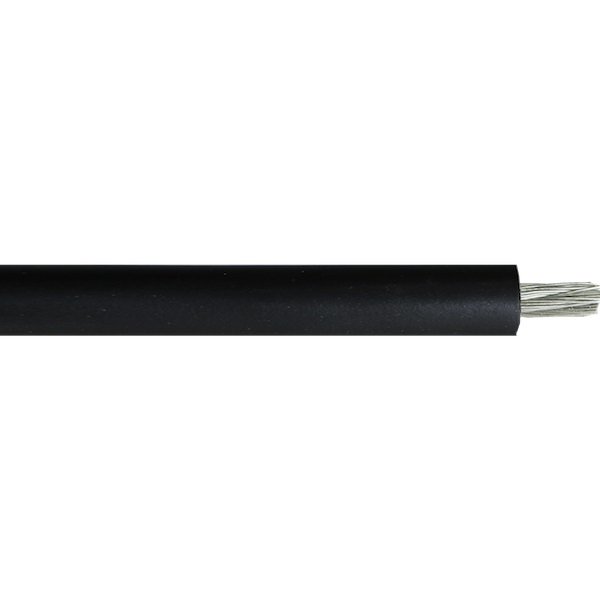

1x16mm EPR/CPE 0.6/1kV 90C MARINE & INDUST FLEX BLACK

Firstflex 1 Core Flexible Cable

1x16mm EPR/CPE 0.6/1kV 90C MARINE & INDUST FLEX BLACK

Attributes
Conductor	16mm² Annealed tinned copper stranded high flexibility (Class 5)
Insulation	EPR R90
Jacket	CPE Elastomer Rubber, Black
Installed Temp Rating	Fixed -40°C to 90°C / Flexing -25°C to 90°C.
Rated Voltage	Uo/U 0.6/1kV.
Min. Bend Radius	Fixed 4 x cable diameter / flexing 6 x cable diameter.
Nominal O.D (mm)	11.8mm ± 10%
Current Rating	70-88 amp
