SKU: PF02/0.75BK:FFA

.75MM 2C FLEX PVC BLACK

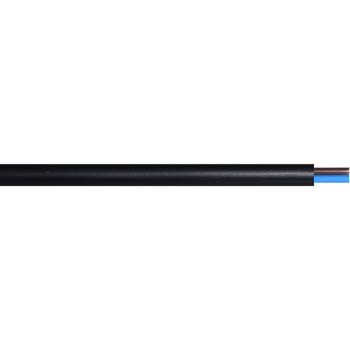

Firstflex 2 Core Flexible Cable

.75MM 2C FLEX PVC BLACK

Attributes
Conductor	0.75mm² (24/0.20mm) Annealed plain copper stranded high flexibility (Class 5).
Cores	2 - Blue, Brown
Insulation	SPVC V-90.
Jacket	SPVC - Black
Installed Temp Rating	Fixed -20 to 90°C / Flexing -5 to 75°C.
Rated Voltage	Uo/U 250/440V.
Min. Bend Radius	Fixed 7.5 x cable diameter / Flexing 15 x cable diameter
Nominal O.D (mm)	6.5mm
Current Rating	7.5 amp
